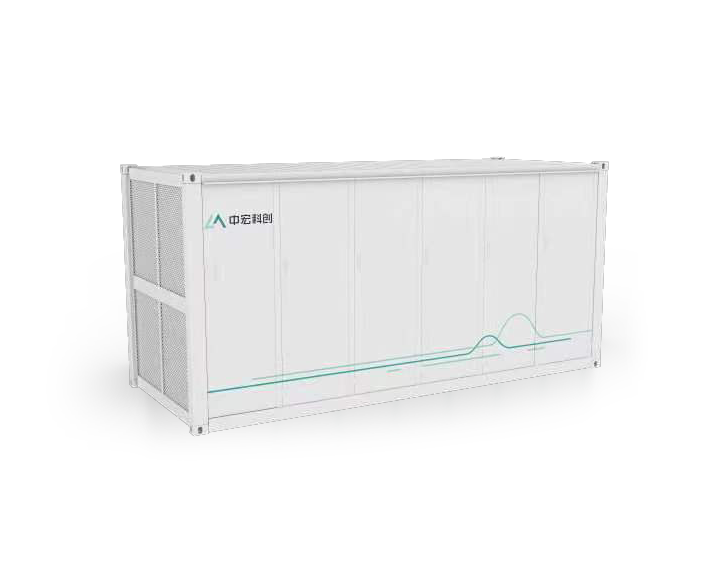

LIQUID COOLED PRODUCT SOLUTION
Safe Reliable
Automotive-grade dedicated cells
Multi-level monitoring and interlocking protection
Digital twin, safeguard and support
Multiple layers of protection, hardware/software coordination
Economic Efficient
·Intelligent temperature control, automatic balancing ·High integration, enhanced energy density ·String level management, increase efficiency ·Precision deltaT control, expand cycle life
Intelligent Aicable
·Situational awareness,proficient in trading, collaborative ·Modular,easily augmentable ·Easy to ship、easy to install、easy to maintain ·Edge cloud collaboration,real time dynamic response
Green Eco-friendly
Comprehensive battery recycling system
Green supply chain
Cost reduction, efficiency enhancement
Energy conservation, emissions reduction, and environmental friendliness
DOWNLOAD
SPECIFICATiONMTS-L3440-1720MTS-L6880-3440
GENERAL
RATED POWER1720kW3440kW
RATED CAPACITY3440kWh6880kWh
RATED VOLTAGE1228.8V1228.8V
C/D RATE0.5P/0.5P0.5P/0.5P
C/D EFFICIENCY≥95%≥95%
SYSTEM SPEC
CYCLE LIFE≥7000@80%SOH@90%DOD≥7000@80%SOH@90%DOD
AMBIENT TEMP-40℃~60℃-40℃~60℃
ALTITUDE≤4000m≤4000m
ENCLOSUREIP55/IP67IP55/IP67
DIMENSIONL6058*W2438*H2896mmL13716*W2438*H2896mm
DC SPECIFICATION
CELL TYPELFPLFP
CELL CAPACITY280Ah280Ah
CONFIGURATION1P384SRack*10P1P384SRack*20P
DOD0%~100%0%~100%
OPERATING VOLT1000V~1460V1040V~1500V
TEMP CONTROLIntelligent Liquid CoolingIntelligent Liquid Cooling
FIRE PROTECTIONEarly Warning+ Perfluorohexanone Pack Level FSS +Water Sprinkler SystemEarly Warning+ Perfluorohexanone Pack Level FSS +Water Sprinkler System
AC SPECIFICATION

AC RATED POWER1720kW3440kW
AC RATED VOLT690V690V
POWER FACTOR50Hz50Hz
FREQUENCY-45Hz-55Hz-45Hz-55Hz
TRANSFORMER0.69kV/10kV or 35kV0.69kV/10kV or 35kV
