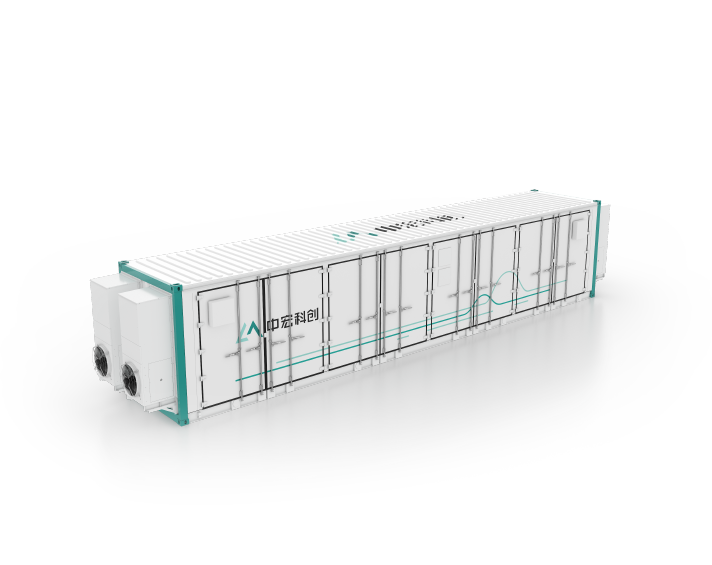

AIR COOLED PRODUCT SOLUTION
Safe Reliable
Automotive-grade dedicated cells
Multi-level monitoring and interlocking protection
Economic Efficient
Intelligent temperature control, automatic balancing
High integration, enhanced energy density
Intelligent Amicable
Situational awareness，proficient in trading, collaborative
Modular，easily augmentable
Green Eco-friendly
Comprehensive battery recycling system
Green supply chain
Cost reduction, efficiency enhancement
Energy conservation, emissions reduction, and environmental friendliness
DOWNLOAD
SPECIFICATiONMTS-A2500-5000MTS-A2600-5200MTS-A2150-4300MTS-A2230-4460
GENERAL
RATED POWER2500kW2600kW2150kW2230kW
RATED CAPACITY5000kWh5200kWh4300kWh4460kWh
RATED VOLTAGE1280V1331.2V1280V1331.2V
C/D RATE0.5P/0.5P0.5P/0.5P0.5P/0.5P0.5P/0.5P
C/D EFFICIENCY≥95%≥95%≥95%≥95%
SYSTEM SPEC
CYCLE LIFE≥6000@80%SOH@90%DOD≥6000@80%SOH@90%DOD≥6000@80%SOH@90%DOD≥6000@80%SOH@90%DOD
AMBIENT TEMP-40℃~60℃-40℃~60℃-40℃~60℃-40℃~60℃
ALTITUDE≤4000m≤4000m≤4000m≤4000m
ENCLOSUREIP55/IP67IP55/IP67IP55/IP67IP55/IP67
DIMENSIONL13716*W2438*H2896mm
L13716*W2438*H2896mmL12192*W2438*H2896mmL12192*W2438*H2896mm
DC SPECIFICATION
CELL TYPELFPLFPLFPLFP
CELL CAPACITY280Ah280Ah280Ah280Ah
CONFIGURATION1P400SRack*14P1P416SRack*14P1P400SRack*12P1P416SRack*12P
DOD0%~100%0%~100%0%~100%0%~100%
OPERATING VOLT1000V~1460V1040V~1500V1000V~1460V1040V~1500V
TEMP CONTROLIntelligent Air CoolingIntelligent Air CoolingIntelligent Air CoolingIntelligent Air Cooling
FIRE PROTECTIONFM200+Water-based Sprinkler SystemFM200+Water-based Sprinkler SystemFM200+Water-based Sprinkler SystemFM200+Water-based Sprinkler System
AC SPECIFICATION

AC RATED POWER2500kW2600kW2150kW2230kW
AC RATED VOLT690V690V690V690V
POWER FACTOR50Hz50Hz50Hz50Hz
FREQUENCY-45Hz-55Hz-45Hz-55Hz-45Hz-55Hz-45Hz-55Hz
TRANSFORMER0.69kV/10kV or 35kV0.69kV/10kV or 35kV0.69kV/10kV or 35kV0.69kV/10kV or 35kV
