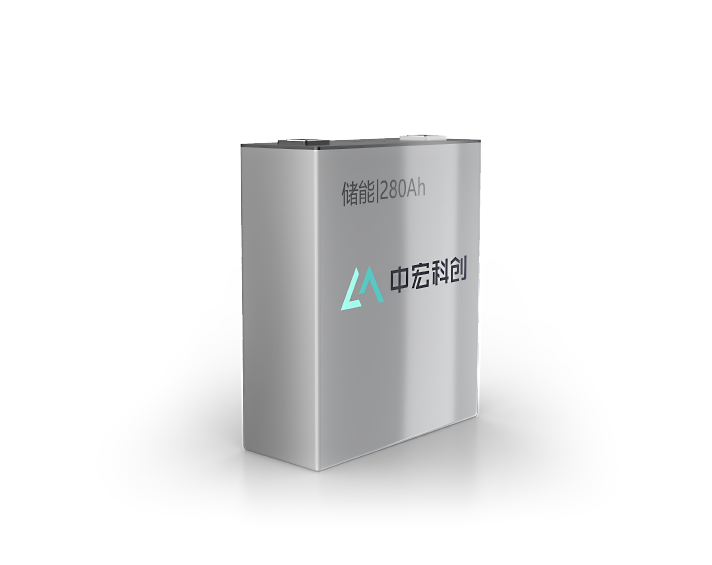

Utility scale/C&I Energy Storage dedicated Cell
Longevity
Compact and stable SEI film, along with full lifecycle restoration technology, enabling over 10,000 cycles of use.
Strong safety
A high-temperature and highly stable LFP material system.
Wide temperature range
-40℃ to 60℃ wide temperature range
Broad compatibility
High power conditioning adaptability,
compatible with voltage platforms ranging from 400V to 1500V
DOWNLOAD
SPECIFICATION Operating Conditions
RATED CAPACITY280Ah

25℃@0.5P/0.5P

RATED VOLTAGE3.2V
OPERATING VOLT2.5V~3.65V / 2.0V-3.65V

T>0℃ / T≤0℃

CELL IMPEDANCE0.18±0.05mΩ

@1kHz,40% SOC

ENERGY DENSIT≥165Wh/kg

25℃@0.5P/0.5P

WEIGHT5.43±0.20kg
CYCLE LIFE≥10000次25℃@100%DOD,70%EOL,0.5P/0.5P
DIMENSION71*173*207T(mm)*W(mm)*H(mm)
