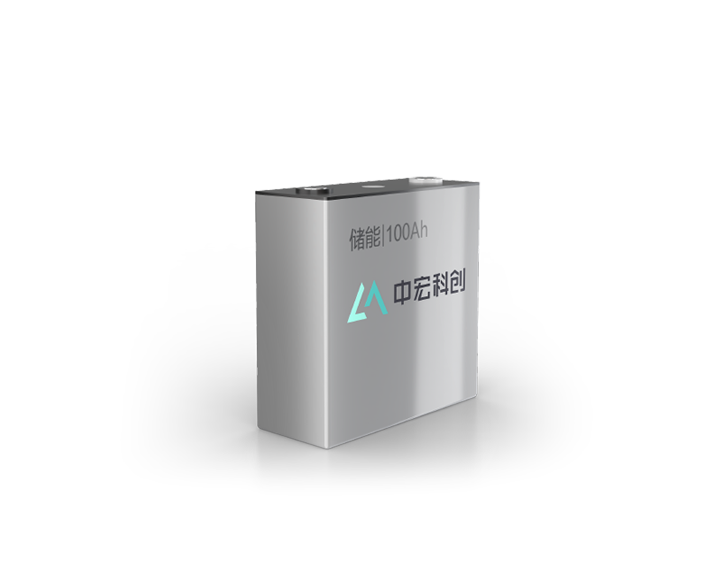

Residential/Portable Energy Storage dedicated Cell
High energy efficiency
High energy efficiency reduces client-side costs
promotes energy conservation and environmental sustainability
Long durability
Multi-dimensional protection reduces self-discharge effect and extends battery charge retention time
Robust safety
Conduct tests that exceed energy storage safety standards
ensure a safe operation throughout the entire lifecycle
Universal applicability
Wide application range, adaptable to voltage platforms
from 50V to 400V
DOWNLOAD
SPECIFICATIOIN
Operating Conditions
RATED CAPACITY100Ah

25℃@0.5C/0.5C

RATED VOLTAGE3.2V


OPERATING VOLT2.5V~3.65V / 2.0V-3.65V

T>0℃ / T≤0℃

CELL IMPEDANCE0.28±0.05mΩ

@1kHz,40% SOC

ENERGY DENSIT≥150Wh/kg

25℃@0.5C/0.5C

WEIGHT1.95±0.15kg


CYCLE LIFE≥6000

25℃@100%DOD,70%EOL,0.5C/0.5C

DIMENSION50*160*119

T(mm)*W(mm)*H(mm)
