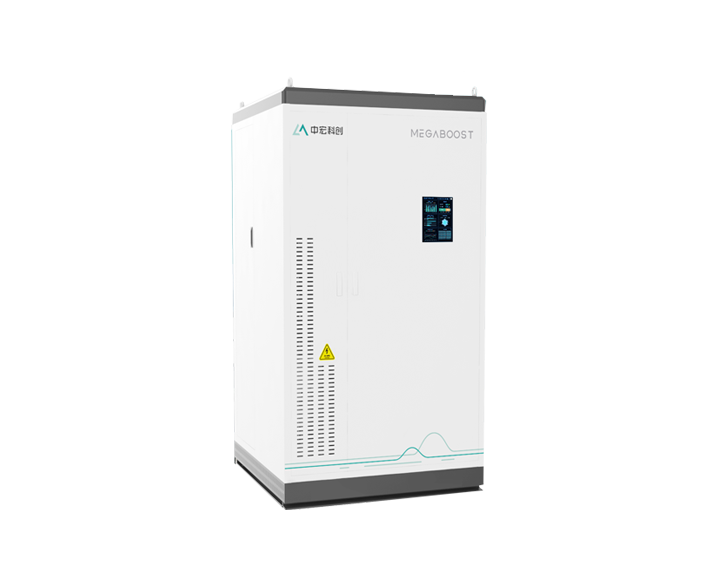

Model | MegaBoost liquid cooled 344kWh |
DC side parameters | |
Battery type | LFP 280Ah |
Battery PACK configuration | 43kWh/1P48S |
Battery system configuration | 344kWh/P384S |
The range of battery voltage | 960-1401.6V |
Temperature detection count | 192 |
AC side parameters | |
AC rated power | 172kW |
AC maximum power | 200kW |
AC current distortion rate | <3% |
DC component | <0.5%lpn |
Grid voltage range | 690V (-15%~+10%) |
Power factor | -1-1 |
Rated grid frequency | 50/60Hz |
System parameters | |
Maximum system efficiency | ≥90% |
Charge and discharge rate | ≤0.5C |
Discharge depth | 0-100%DoD |
System voltage system | TN690V |
Number of cycles | >8000 |
Charge-discharge switching time | <100ms |
Communication interface | CAN/LAN/RS485/Dry Contact |
Protection grade | IP55 |
Cooling mode | Liquid cooling |
Operating temperature | -20-55°C |
Relative humidity | 5~95%RH,no condensation |
Noise | <70db |
Altitude | >2000m |
System size (width * height * depth) | 1300*2650*1300mm |
Fire Protection System | PERFLUORO Control to battery pack level |
Weight | 3500Kg |
