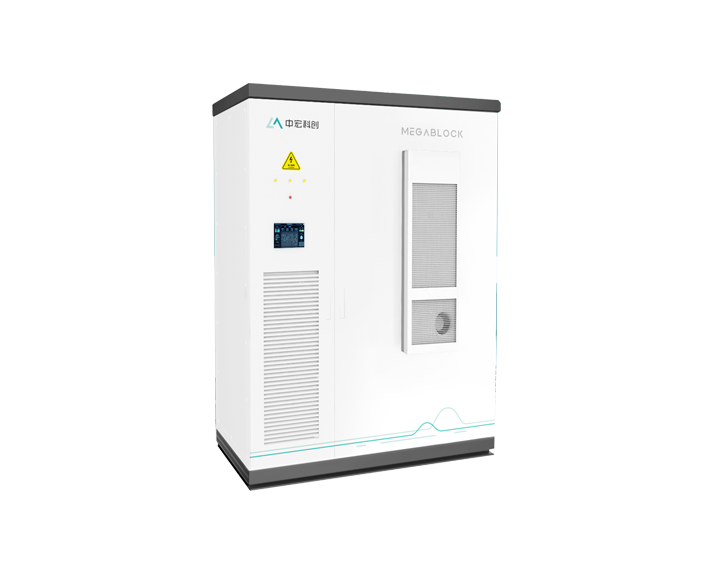

MegaBlock All In One C&I Energy Storage System
Safe Reliable
·Automotive-grade dedicated cells ·Digital twin, safeguard and support ·Multi-level monitoring and interlocking protection ·Multiple layers of protection, hardware/software coordination
Economical Efficient
·Intelligent temperature control, automatic balancing ·String level management, increase efficiency ·High integration, enhanced energy density ·Precision deltaT control, expand cycle life
Intelligent Amicable
·Situational awareness,proficient in trading, collaborative ·Easy to ship、easy to install、easy to maintain ·Modular,easily augmentable ·Edge cloud collaboration,real time dynamic response
Green Eco-friendly
·Comprehensive battery recycling system ·Cost reduction, efficiency enhancement ·Green supply chain ·Energy conservation, emissions reduction, and environmental friendliness
DOWNLOAD
SPECIFICATiON

MegaBlock 272kWh

GENERAL
RATED POWER136kWh
RATED CAPACITY272kWh
RATED DC VOLTAGE972.8V
C/D RATE0.5P/0.5P
C/D EFFICIENCY≥95%
SYSTEM SPEC
CYCLE LIFE≥6000@70%SOH@90%DOD
AMBIENT TEMP-20℃~60℃
ALTITUDE≤4000m
ENCLOSUREIP54
DIMENSIONL1800*W1200*H2530mm
DC SPECIFICATION
CELL TYPELFP
CELL CAPACITY280Ah
CONFIGURATION
1P304S
DOD0%~100%
OPERATING VOLTAerosol FSS
TEMP CONTROLAir Cooling
FIRE PROTECTIONAerosol FSS
AC SPECIFICATION
AC RATED POWER136kW
AC RATED VOLT480V
POWER FACTOR-1 -  1
FREQUENCY45Hz-65Hz
